FC5515 120V

Speed Range	200 rpm – 15,200 rpm
Maximum Relative Centrifuge Force (x g)	21,953 g
Maximum Capacity(Rotor)	44 x 1.5 / 2.0ml;12 x 5 ml
Item Number:	30130867

Request a Quote ADD TO QUOTE LIST

View All Frontier™ 5000 Series Micro Models

Overview
Specs
Accessories
Documents

Overview

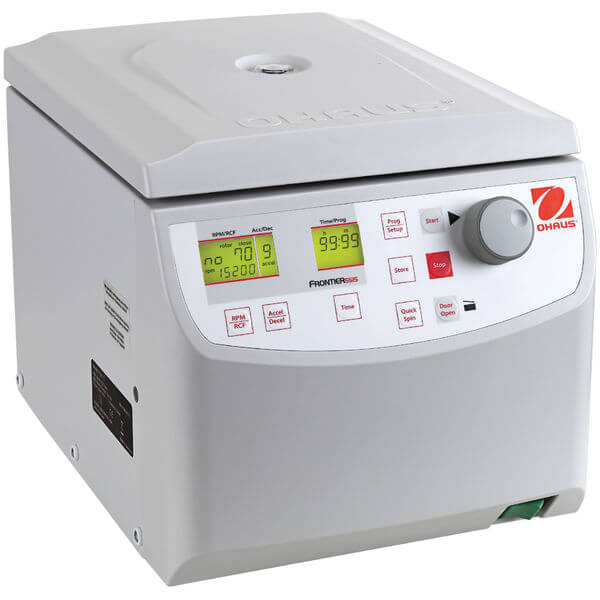

Frontier Micro centrifuges deliver high-speed operation for a range of essential lab applications, such as DNA/RNA preparation, ultrafiltration, and more. Biocontainment rotors enable research involving hazardous samples. Engineered with convenience of operation in mind, these centrifuges feature an intuitive interface, with all key parameters immediately accessible for observation and adjustment. The compact design saves valuable bench space in the lab.

Applications

Centrifugation

Display

LCD, Backlight, 2 lines

Operation

AC Power (Included)

Communication

N/A

Construction

Brushless quiet motor, small footprint

Design Features

High sample throughput,multi-safety control, personal program function

Specifications

Speed Range	200 rpm – 15,200 rpm
Maximum Relative Centrifuge Force (x g)	21,953 g
Maximum Capacity(Rotor)	44 x 1.5 / 2.0ml;12 x 5 ml
Program memories	99
Rotor In Package	Not applicable
Acceleration Gear	10
Deceleration Gear	10
Dimensions	15.5 in x 11.5 in x 11.3 in (393 mm x 292 mm x 287 mm) (LxHxW)
Display	LCD with backlight
Lid lock	Motor driven
Net Weight	38 lb (17 kg)
Noise Level	≤60±2 dB(A)
Power	AC Power (Included)
Power Consumption	280 W
Pre-cool time	Not applicable

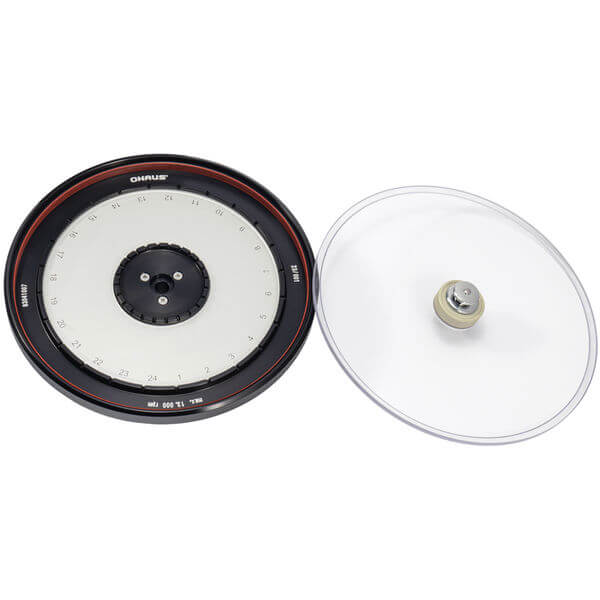

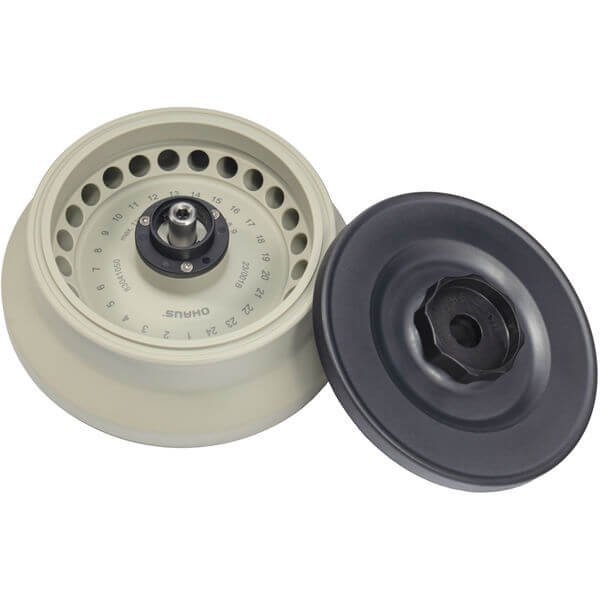

Rotor Compatibility	Angle 24x1.5/2.0ml BIOSEALS V2;Angle 30 x 1.5 ml / 2.0 ml Sealable;Angle 44 x 1.5 / 2.0 ml ID V2;Hematocrit rotor, 24 × Capillaries;Angle 12 x 5 ml Sealable;Angle 4 x 8 place PCR Strips
Rotor Recognition Method	Manual
Running Time	Continous;10 sec to 99 h 59 min 59 sec
Safety Certification	CE;FCC
Working Environment	36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing)
